See It in Action

Key Features

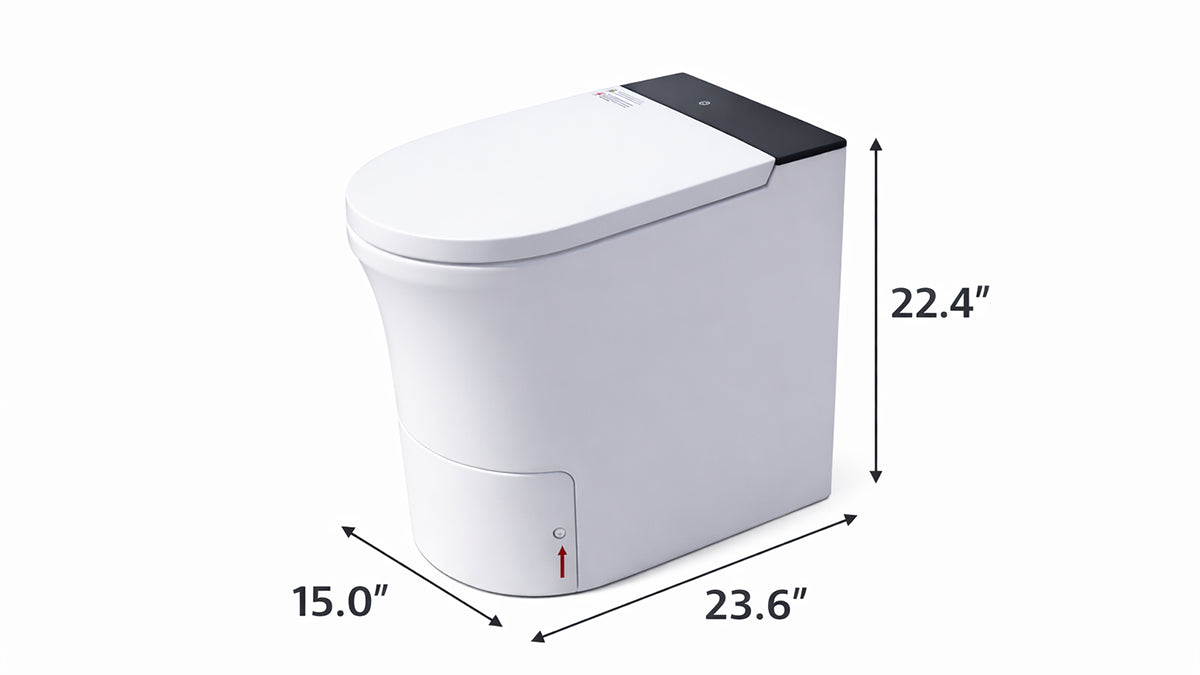

Modiwell Electric Incineration Toilet Dimensions

Simple, Compact Installation

  • Electric Incineration Toilet Dimensions: 23.6" × 15.0" × 22.4"
  • Weight: 77 lbs
  • Load capacity: 440 lbs
  • Ash Container Capacity: 5L
  • Cycle Time: 50–60 minutes

Installation is straightforward and DIY-friendly with provided templates and guidance.

Off Grid Cabin Toilet Without Septic System

Installing a septic system can exceed $10,000 and require complex permits. This electric incineration toilet requires only:
- Standard power outlet (power options available upon request)
- 110mm ventilation pipe
It functions as a septic alternative toilet system for cabins, remote homes, and rental properties.
No excavation,No underground tanks,No regulatory delays.

Operating Cost of Modiwell Electric Incineration Toilet

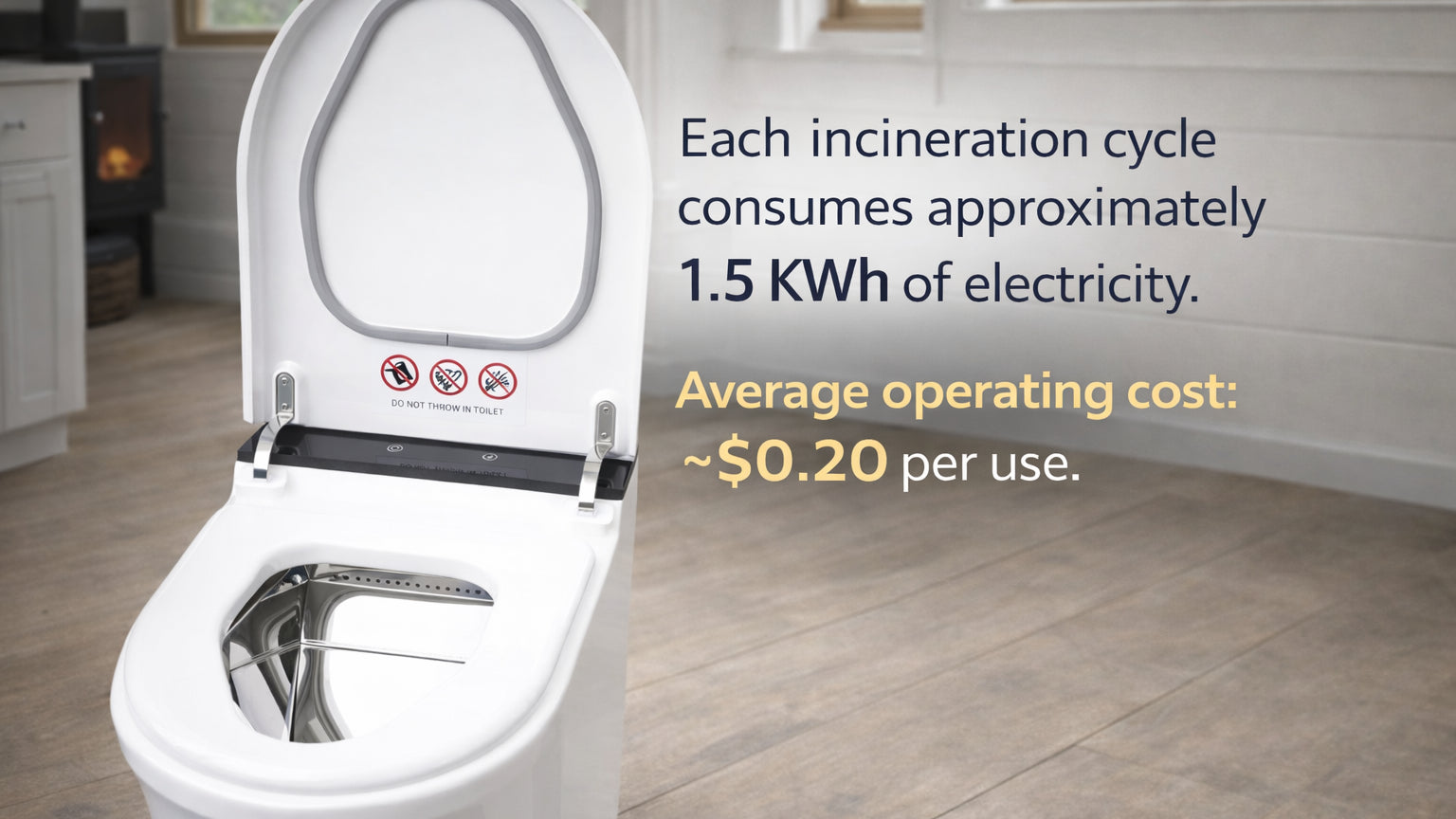

Each incineration cycle consumes approximately 1.5 kWh of electricity.
Average operating cost: ~$0.20 per use.Compared to septic maintenance, dump station fees, or chemical toilet servicing, this waterless incineration toilet offers long-term cost control and convenience.

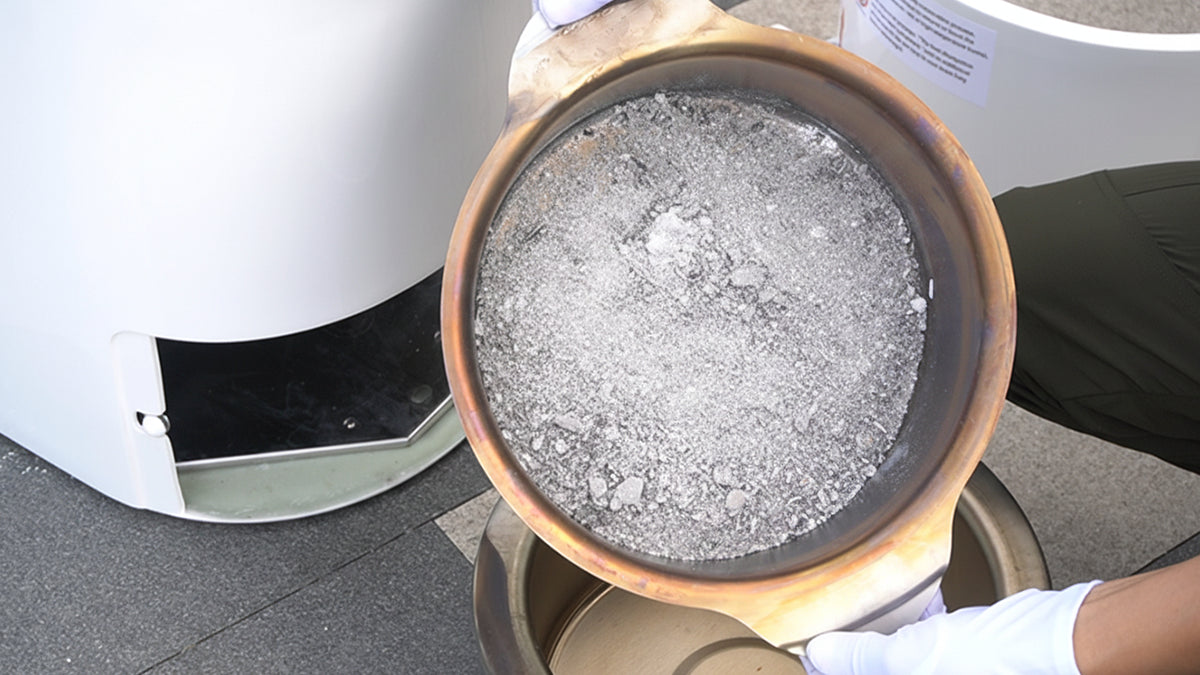

Ultra-Low Maintenance Design

Ultra-Low Maintenance Design

The 5L ash container supports 80–100 uses before emptying.
For two adults, that means approximately two months of operation.

  • No weekly compost handling.
  • No pump truck visits.
  • No frequent servicing.
  • Empty ash. Continue living.

Comparison table

Primary Positioning

Portable Camping & RV

Fixed Indoor / RV

Fixed Indoor / RV

Expanded Size

17.5″ × 16″ × 31.5″

17.4" x 14.4" x 34.4"

23.6" × 15.0" × 46"

Folded / Storage Size

17.5″ × 16″ × 10.75″

17.4" x 14.4" x 18.9"

23.6" × 15.0" × 22.4"

Waterproof

Not Support

IPX4 (Splash-Proof) Fully Closed Only

IP34 Splash-proof

Standard Charging

AC Charger

Hardwired (9V-30V) & AC Charger

120V AC 60Hz

Motor 12V DC

Fan Voltage 12V DC

Product Weight

16.5 lbs

21.4 lbs

77 lbs

Weight Capacity

350 lbs

350 lbs

440lbs

Product Details

Specifications
Model Number T02
Dimensions (Lid Closed) 23.6" × 15.0" × 22.4"
Dimensions (Lid Open) 23.6" × 15.0" × 46.0"
Weight 77 lbs
Weight Capacity 440 lbs
Protection Class IP 34 (Splash-proof)
Power & Performance
Power Range 120V AC, 60Hz
Rated Power 1700W
Motor / Fan Voltage 12V DC
Backup Battery 12V DC, 3.6Ah
Cost Per Use
Estimated Cost Approximately $0.20 per use

FAQs

Please read our FAQs page to find out more.

What are the dimensions of a modiwell T02 Incinerating Toilet?

TheModiwell T02 Incinerating Toilet features a compact folded 23.6" × 15.0" × 22.4" frame, which is about the footprint of a large microwave, and an unfolded 23.6" × 15.0" × 46.0"frame, which is about the seat area of a standard office chair. The toilet weighs only 77 pounds. Despite its compact size, it can comfortably support up to 440 pounds.

How long does it take to fully charge the battery, and how long can it be used per charge?

It is made-to-order, and it usually takes about 1.5 months to arrive in the United States. However, the exact delivery time may vary depending on the specific shipping address. Please contact us for more detailed information.

What is the power voltage of the T02 incineration toilet, and what type of plug does it use?

The T02 can be configured according to the user’s region. It supports customized voltage options (such as 110V or 220V AC) and the plug type can also be adapted based on the destination country.This means we will configure the appropriate voltage and plug standard according to your usage location to ensure compatibility.

What is the installation method of the T02 incineration toilet?

Only need to reserve sufficient installation space. On the back, there are two ventilation pipes: one air inlet and one air outlet. Please ensure that the openings for the ventilation pipes are properly sized and that there is adequate surrounding space for ventilation.

What is the difference between the T02 incineration toilet and other incineration toilets?

At the same price level, we have adopted a modular design for the product, which makes it less prone to issues and easier to repair.
