Thank you for your support of our products. We have compiled some of the most common issues and solutions that customers may encounter while using the LE-310. We hope this guide will help improve your user experience and provide useful assistance during use.

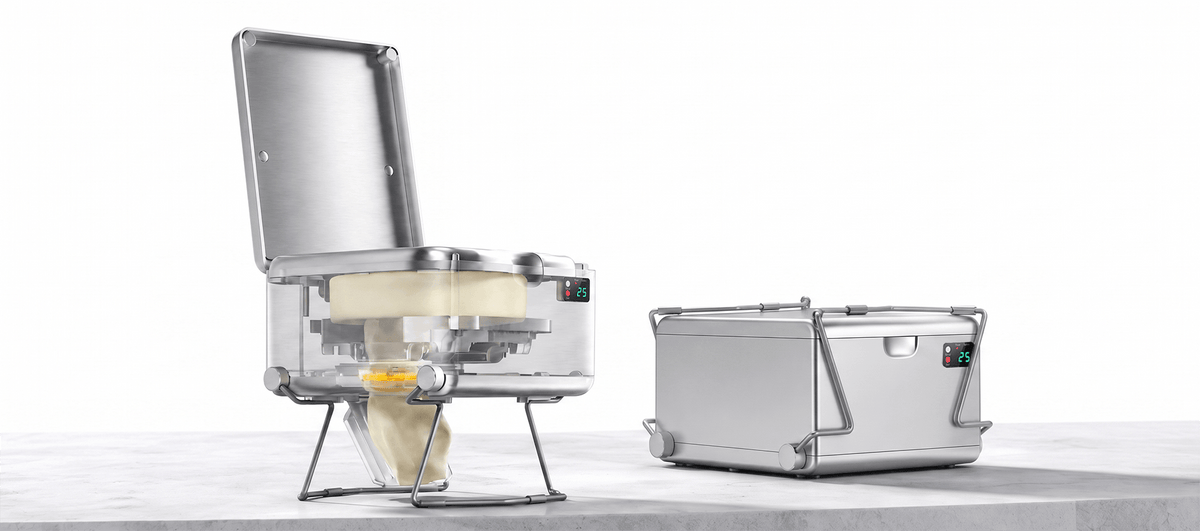

Modiwell LE-310 Dry Flush Toilet
The premium solution for family camping and RV comfort.
SHOP NOWProduct Parameters
| Parameter | Specification |
|---|---|
| Color | White / Silvery / Grey |
| Dim (Expanded) | 17.5" x 16" x 31.5" |
| Dim (Folded) | 17.5" x 16" x 10.75" |
| Dim (Seat) | 16.14" x 13.77" |
| Seat Height | 17.625" |
| Weight Capacity | 330 lbs |
| Product Weight | 16.5 lbs |
| Rated Power | 60 W (Max) |
| Power Supply | Charger Input: 100-240V AC | Output: 14V / 2A DC |
| Battery Capacity | 57.72 Wh Lithium Battery |
| Materials | Premium Stainless Steel, High-Grade Plastic |
| Operating Environment | 0 C - 40 C (32 F - 104 F), 20% - 80% RH |
| Storage Environment | -20 C - 60 C (-4 F - 140 F), 5% - 95% RH |
Packing List
- MODIWELL LE-310 Dry Flush Toilet x 1
- 60-Use Refill Bag & Coagulant Pack x 1
- Power Charger (AC 100-240V / Output 14V 2A) x 1
- Urine Tank x 1 (US Only)
- User Manual x 1
Installation Method and Working Principle
Please refer to the video link below.
https://www.youtube.com/watch?v=CPZKFlNLU4c&t=30s
Comparison with R1808
| Model | Portable | Installation | Max Capacity | Power / Charging | Waterproof | Best Scenarios |
|---|---|---|---|---|---|---|
| LE-310 | Yes | Free-standing | 330 lbs | AC Wall Charger | 12V Cigarette Lighter | Not support | Camping, RV, outdoor, emergency, off-grid cabin |
| R1808 | No | Free-standing or fixed | 330 lbs | AC Wall Charger | 12V Cigarette Lighter | Hardwired DC (9V-30V) | IPX4 (fully closed only) | RV, bathroom, long-term use, off-grid cabin |
Charging Rules
- Recommended charging time: It is recommended to charge the device when the battery level drops to 25% to ensure a better user experience and avoid low-power interruption.
- Please fully charge the device before long-term storage.
- Charger requirements: To ensure safety and compatibility, it is strongly recommended to use the original charger. If the charger is lost, please contact the distributor or official after-sales service to purchase a replacement.
- Charging method: Charge by connecting the device to a standard wall outlet using the original charger.
- Full charging time: Approximately 2-3 hours.
- Battery indicator: The display shows real-time battery status in 5 levels: 100%, 75%, 50%, 25%, and 0% (low battery warning).
- Automatic control: If the device is left on without operation, it will automatically enter sleep mode to reduce power consumption.
- Power-saving tip: It is recommended to turn off the power switch when not in use. The switch is located at the back of the device.
How to Reduce Consumable Usage
We recommend using our urine bottle together with the device. Use the urine bottle for number one and use refill bags and coagulant for number two. This can significantly reduce the consumption of refill bags and coagulant.
Please note: when using the urine bottle, make sure it is placed on a stable surface, and empty it in time when it is half full to avoid leakage.
How does the toilet seat indicate when the toilet bag is almost empty?
When the bag is almost empty, it will display a "Stop" message. The "Stop" message is red for blue and white bags, and white for black bags.
About 75% Battery Display Issue
- Full charge indicator: When you see the green power indicator light staying on without flashing, it means the internal battery is fully charged (100%).
- Display issue: If the screen shows 75%, this is a display bug. Due to a program issue, the system only shows 75% for battery levels between 50% and 100%.
- Actual status: The actual battery is fully charged at 100%. This does not affect usage time or performance.
Solution to E4 Code
Modiwell Dry Flush Toilet E4 Code Analysis and Detailed Solutions
Leg Removal Method
Modiwell Dry Flush Toilet Leg Removal Batch Customization Solution
Refill Bag Guide
Refill bag guide version: check if your unit has a 1st Gen or 2nd Gen refill bag guide.
If you are using a 1st generation refill bag guide, please contact customer service to request a free replacement with the 2nd generation refill bag guide.
These are the most common issues customers may encounter while using the LE-310. If you experience any other problems, please feel free to contact our after-sales email at support@modiwell.com. We will respond to your inquiry as soon as possible after receiving your message.
