R1808 RV Toilet Fuse Troubleshooting & Replacement Guide
The R1808 RV toilet is equipped with a dual-fuse protection system. Acting as the final line of defense for electrical safety, it effectively prevents abnormal currents from causing secondary or catastrophic damage to the toilet's precision internal components.
I. Fuse Configuration and Functions

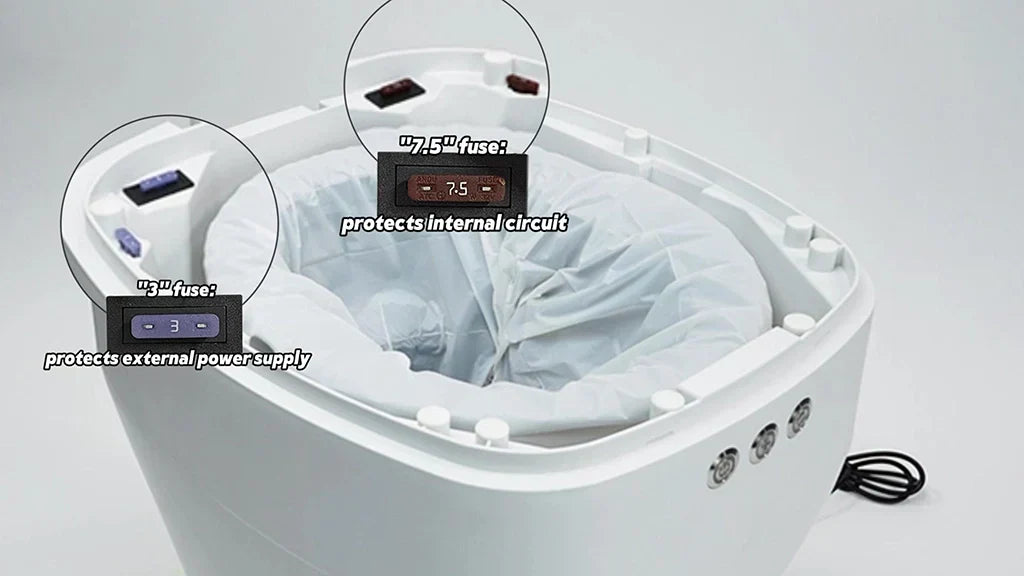

The Modiwell R1808 is equipped with two functional fuses controlling different circuits, with two spare fuses provided adjacent to the fuse holder.
| Fuse Type/Spec | Controlled Function | Fault Symptom | Spare Fuse |
|---|---|---|---|
| 7.5A Internal Fuse | Operating Circuit (Startup & Operation) | Toilet will not start | Located by the fuse holder |
| 3A External Fuse | Charging Circuit (Charging Function) | Toilet will not charge | Located by the fuse holder |
IMPORTANT: Fuses do not blow under normal use. Once blown, it indicates the current has been safely cut off. Troubleshooting is mandatory.
II. When to Check the Fuses?
| Fault Symptom | Fuse to Check | Potential Causes |
|---|---|---|
| Complete failure to start (No response) | 7.5A Internal Fuse | Abnormal current (e.g., motor overload, short circuit). |
| Will not charge after connecting power | 3A External Fuse | Abnormal current (e.g., charging module failure, short circuit). |
III. How to Identify a Damaged Fuse
1. Visual Inspection
- Normal: The metal wire (usually S-shaped) is intact.
- Damaged (Blown): The metal wire is broken or shows scorch marks.
2. Multimeter Testing
- Tool: Use a multimeter set to continuity or buzzer mode.
- Normal: The multimeter emits a "beep" and displays a value near 0.
- Damaged (Blown): No sound or displays "OL" (Open Line).
IV. Troubleshooting Workflow & Handling
Step 1: Check External Power
Confirm the external power is connected securely and providing power normally.
Step 2: Targeted Troubleshooting
- Charging Issues（(3V external fuse blown)）: Check the charging cable and port for debris, shorts, or abnormal bends.
- Startup Issues（(7.5A internal fuse blown)）: Check for foreign objects jamming the agitation or discharge mechanism causing motor overload.
Step 3: Emergency Safety Operation
The R1808 has no master power switch. In case of emergency (smoke, smell, or abnormal noise), immediately pull out the external fuse to cut the current.
Step 4: Replacement & Professional Support
If the cause is ruled out, use the spare fuse. However, due to circuit complexity, contact us for specific replacement steps and deep-level troubleshooting.
Final Warnings & Contact Information
- Do not blindly replace the fuse without identifying the cause; the new fuse may blow immediately.
- If the new fuse blows repeatedly, stop using the toilet immediately and contact us.
- Causes are complex; do not disassemble the main body of the toilet!
Contact Us: Contact us before replacing any fuses! Our technicians will help diagnose the root cause and guide the correct operation.
